FBW.DotNet.AspNetCore 1.0.7

FBW.DotNet.AspNetCore

ASP.NET Core扩展包，目前支持.NET3.1,.NET5,.NET6,.NET7,.NET8,.NET9

如何使用

1、安装FBW.DotNet.AspNetCore依赖。
Cmd install：

dotnet add package FBW.DotNet.AspNetCore

2、在Startup.cs中配置

//Mvc相关配置
builder.Services.AddDotNetDefaultMvc();

//Identity相关配置
builder.Services.AddDotNetIdentityServer(options => {
    options.PrivateKey = builder.Configuration["SystemConfig:PrivateKey"];
}).AddResourceOwnerValidator<ResourceOwnerPasswordValidator>();

//数据库配置
builder.Services.AddDotNetDbContextPool<IdentityContext>(options =>
{
    options.ConfigureDbContext = op =>
    {
         op.UseNpgsql(builder.Configuration["SystemConfig:DBConnectionString"],
            //看实际情况指定迁移程序集
            b => b.MigrationsAssembly("DotNet.AspNetCore.WebApi"))
        .UseSnakeCaseNamingConvention()
#if !DEBUG
        .EnableSensitiveDataLogging()
#endif
            .UseLoggerFactory(LoggerFactory.Create(builder => builder.AddSerilog()));
        //.EnableSensitiveDataLogging();
        // 配置日志输出
        //op.LogTo(Console.WriteLine);
    };
    options.UseRepository<IdentityContext>();
    options.UseUnitOfWork<IdentityContext>();
    options.UseDotNetRedisCache(builder.Configuration.GetSection("RedisConfig").Get<RedisOptions>(), 100,100);
});

#region 多租户
builder.Services.AddDotNetTenantDbContext<TenantDbContext>(options =>
{
    var provider = builder.Configuration.GetValue("Provider", "PostgreSql");
    var tenantDBConfig = builder.Configuration.GetSection("SystemConfig:MultiTenantDBConfig")
        .Get<List<MultiTenantDBConfig>>()?.FirstOrDefault(t => t.DBProvider.ToString() == provider);
    options.ConfigureDbContext = op =>
    {
        op.UseNpgsql(builder.Configuration["SystemConfig:DBConnectionString"])
        .UseSnakeCaseNamingConvention()
        .UseLoggerFactory(LoggerFactory.Create(builder => builder.AddSimpleConsole()));
    };
    options.TenantDBConfig = tenantDBConfig;
    options.UseRepository<TenantDbContext>();
    options.AddDatabaseProvider<PostgreSqlProvider>();
    options.AddDatabaseProvider<SqlServerProvider>();
    options.AddDatabaseProvider<MySqlProvider>();
});
builder.Services.UseMultiTenancy();
#endregion

//jwt相关配置
builder.Services.AddDotNetJwtBearerAuthentication(builder.Configuration["SystemConfig:PublicKey"],builder.Configuration["SystemConfig:ValidIssuer"]);


//SwaggerDoc配置
builder.Services.Configure<SwaggerConfig>(builder.Configuration.GetSection("SwaggerConfig"));
builder.Services.AddSwaggerDoc(builder.Configuration.GetSection("SwaggerConfig").Get<SwaggerConfig>());

var app = builder.Build();


app.UseDotNetDefaultWebApi();
app.UseSwaggerUI(builder.Configuration.GetSection("SwaggerConfig").Get<SwaggerConfig>());
app.UseIdentityServer();

//初始化多租户数据库
app.Services.InitTenantDatabase<TenantDbContext>();

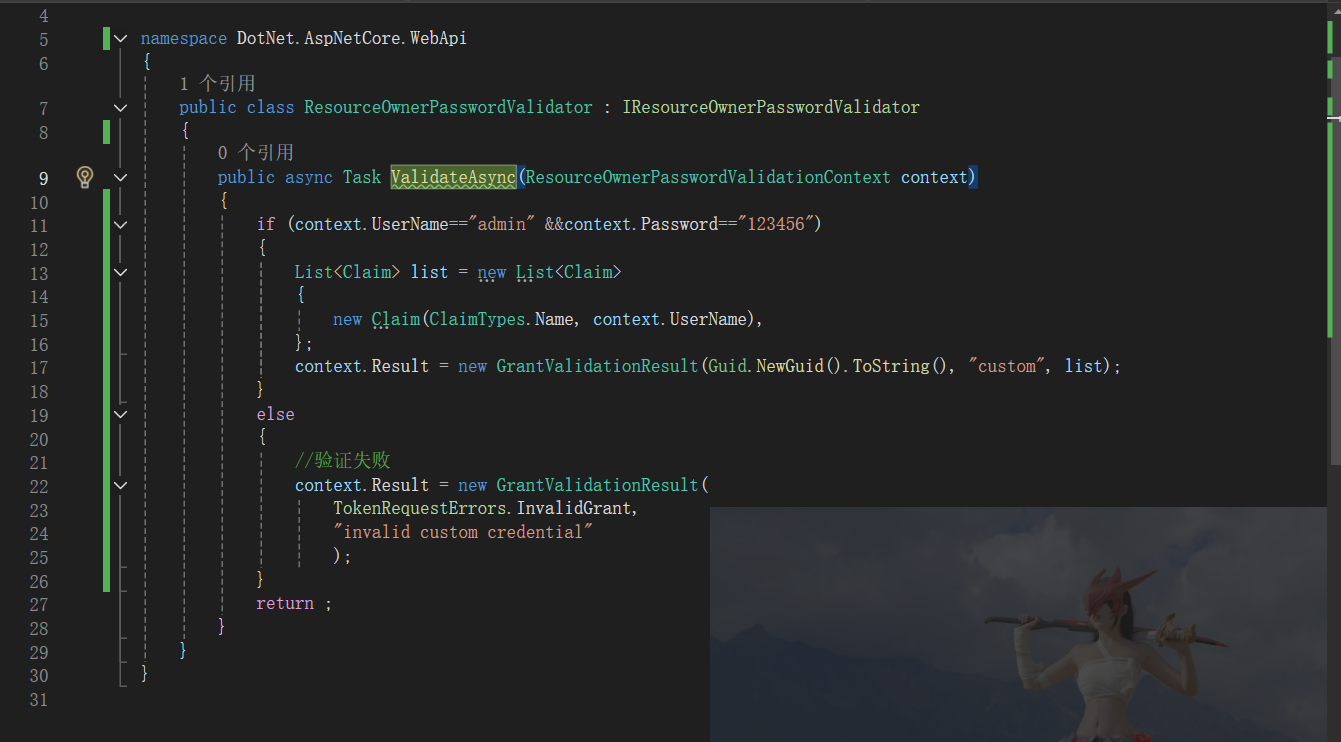

• 必须 你需要创建ResourceOwnerPasswordValidator继承IResourceOwnerPasswordValidator接口实现ValidateAsync方法参考下图

• 多租户支持id隔离和库隔离
• 多租户支持从token中解析TenantId字段(CurrentTokenTenantResolveContributor),请求头中解析TenantId字段(CurrentHeaderTenantResolveContributor),地址栏中解析TenantId字段(CurrentQueryTenantResolveContributor)
• 扩展解析策略继承TenantResolveContributorBase抽象类型 ,以单例模式注入租户访问器ICurrentTenantAccessor
• 安装合适版本的Microsoft.EntityFrameworkCore.Design,在web程序目录创建MyMigrationsScaffolder,MyMigrationDesignTimeServices

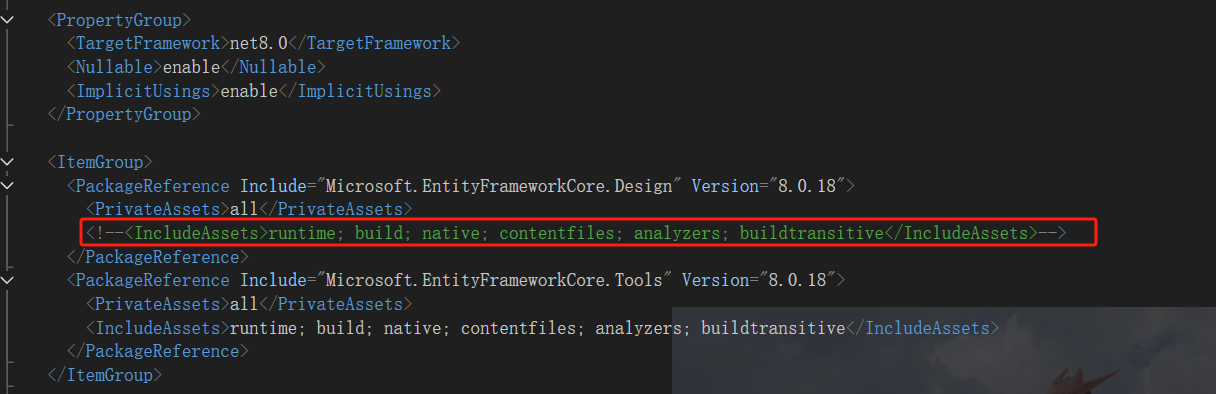

• 必须修改DotNet.AspNetCore.WebApi.csproj的配置 参考如下图

• MyMigrationsScaffolder,MyMigrationDesignTimeServices代码参考

//重写GetDirectory 不进行深度检查
public class MyMigrationsScaffolder: MigrationsScaffolder
{
    private readonly Type _contextType;
    public MyMigrationsScaffolder(MigrationsScaffolderDependencies dependencies) : base(dependencies)
    {
        _contextType = dependencies.CurrentContext.Context.GetType();
    }
    protected override string GetDirectory(string projectDir, string? siblingFileName, string subnamespace)
    {
        var defaultDirectory = Path.Combine(projectDir, Path.Combine(subnamespace.Split('.')));

        if (siblingFileName != null)
        {
            if (!siblingFileName.StartsWith(_contextType.Name + "ModelSnapshot."))
            {
                var siblingPath = TryGetProjectFile(projectDir, siblingFileName);
                if (siblingPath != null)
                {
                    var lastDirectory = Path.GetDirectoryName(siblingPath)!;
                    if (!defaultDirectory.Equals(lastDirectory, StringComparison.OrdinalIgnoreCase))
                    {
                        Dependencies.OperationReporter.WriteVerbose(DesignStrings.ReusingNamespace(siblingFileName));

                        return lastDirectory;
                    }
                }
            }
        }

        return defaultDirectory;
    }

/// <summary>
/// https://docs.microsoft.com/en-us/ef/core/cli/services
/// </summary>
public class MyMigrationDesignTimeServices: IDesignTimeServices
{
    public void ConfigureDesignTimeServices(IServiceCollection serviceCollection)
    {
        serviceCollection.AddSingleton<IMigrationsScaffolder, MyMigrationsScaffolder>();
    }
}

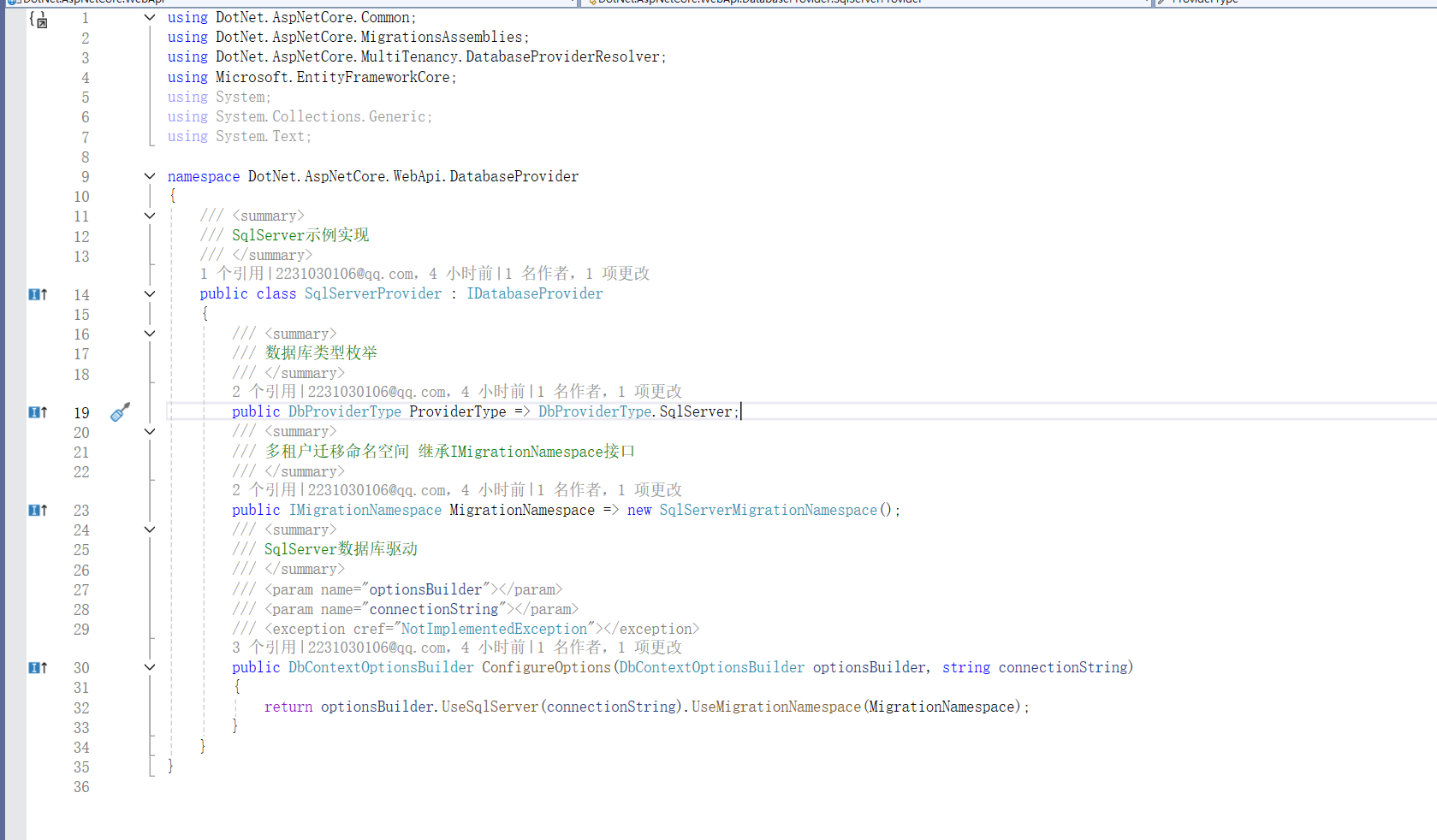

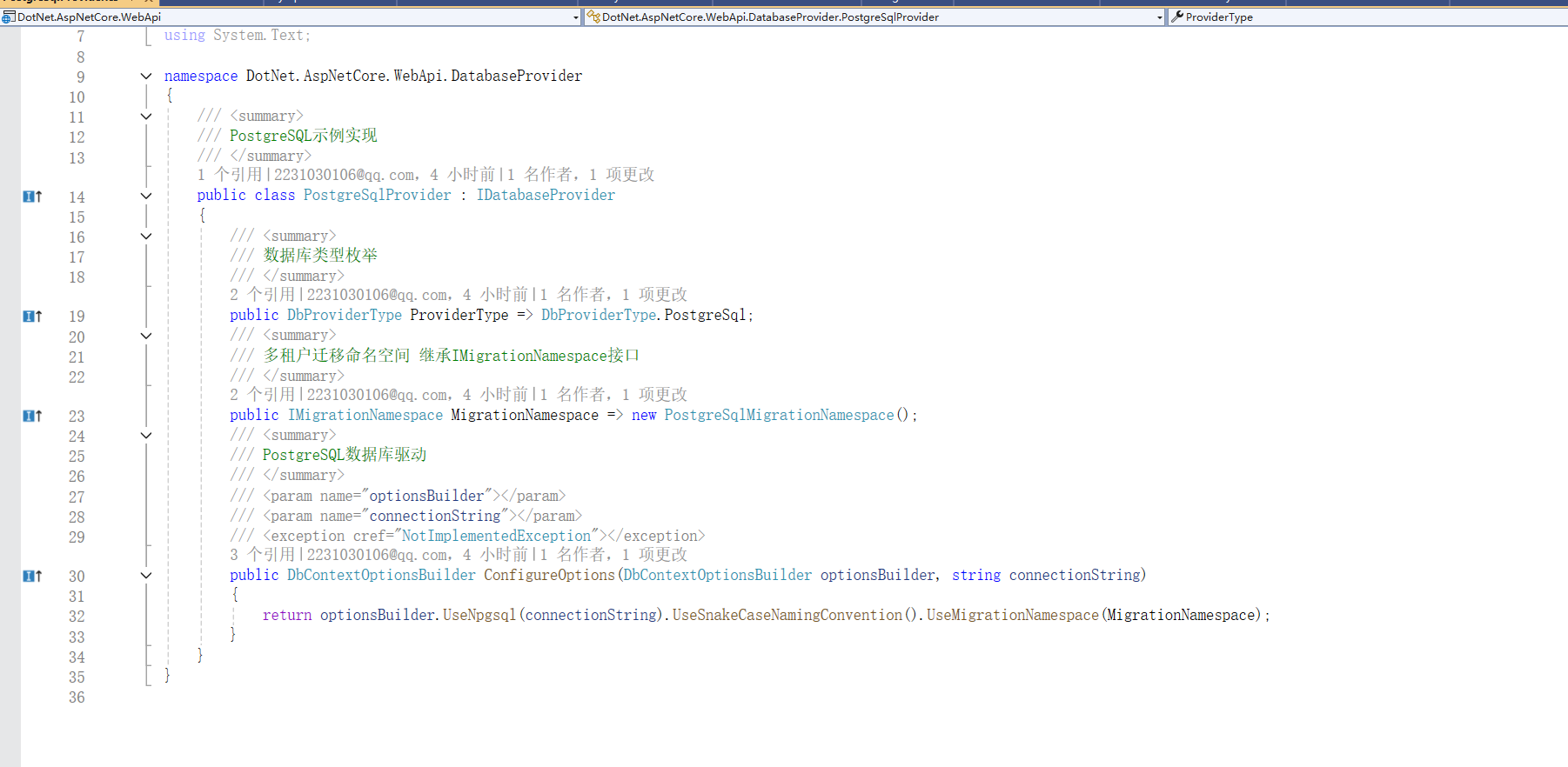

• PostgreSqlProvider/SqlServerProvider 代码参考 按需扩展支持不同的数据库*

3、 appsettings.json配置文件实例：

{
   //接口文档配置
  "SwaggerConfig": {
    "Title": "DotNet.Admin.Web",
    "Version": "v1",
    "Description": "DotNet.Admin.Web",
    "Name": "DotNet",
    "Email": "2231030106@qq.com",
    "ProxyRoutes": {
      //"localhost": "http://127.0.0.1:6033/IdentityServer"
    },
    "RoutePrefix": "help",
    "IsAdminHelpUI": true,
    "AdminSecret": "admin",
    "IsSwaggerBasicAuth": false
  },
  //redis 配置 (启用redis时配置)
  "RedisConfig": {
    "Connection": "127.0.0.1:6379,password=123456",
    "KeyPrefix": "dotnetadminweb",
    "DataProtecteKey": "dataprotectionkeys",
    "IsSentinel": false, // 是否哨兵模式
    "SentinelConfig": {
        "EndPoints": [ // 哨兵端口
        // "10.10.0.124:26380"
        ],
        "Password": "123456",
        "SentinelPassword": "123456",
        "ServiceName": "dotnetadminweb",
        "DefaultDatabase": 0,
        "Password": "123456",
        "SentinelPassword": null,
        "ConnectionSelectionStrategy": "RoundRobin" //LeastLoaded  RoundRobin
    }
  },
   //系统配置
  "SystemConfig": {
    "ValidIssuer": "https://localhost:44354",
    "DatabaseVisitLogSleep": 10000,//系统日志入库时间
    "DBConnectionString": "Host=127.0.0.1;Username=postgres;Password=123456;Database=DotNet_Template",
    //多租户模式下同时支持不同的数据库集合,仅开发迁移多租户不同数据库时需要配置
    "MultiTenantDBConfig": [
      {
        "DBProvider": "PostgreSql",
        "DBConnectionString": "Host=127.0.0.1;Username=postgres;Password=123456;Database=DotNet_Template_470786554998853"
      },
      {
        "DBProvider": "SqlServer",
        "DBConnectionString": "Data Source=.;Initial Catalog=DotNet_Template_470786554998853;User Id=sa;Password=123456;Encrypt=True;TrustServerCertificate=True"
      }
    ],
    "PublicKey": "MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAiQPMKq+BQIhoImH30v8FH02x8S8Bz6+ROwzidBEk8C2BidnnMFs2OeXQeHRW7HSJRAhTVTBwhWoJ+3G/C2L6FiMLYPgaKpWsacqZPkbcgpHKfQLJn1weXeZqLNeZKi+aebOX27JOt9cph/YVb5hBTgVzl5q7yASOEg9+wV/y1d8Jq4EAlzXdAux+JRgMGQgj8CSPSSY1z2PO4iZProdgFa/dto8AlVRabVCTx6BoCnMrImy2XRHdF0Ue0eY5mtAAsnLudjKqm8AUopMOivNCLVI5eXzMIoMmpa0bUj7IluoushYVLY0dw7flyKldiDbyvi4w/jrxHRruNMb11fNEFQIDAQAB",
    "PrivateKey": "MIIEowIBAAKCAQEAiQPMKq+BQIhoImH30v8FH02x8S8Bz6+ROwzidBEk8C2BidnnMFs2OeXQeHRW7HSJRAhTVTBwhWoJ+3G/C2L6FiMLYPgaKpWsacqZPkbcgpHKfQLJn1weXeZqLNeZKi+aebOX27JOt9cph/YVb5hBTgVzl5q7yASOEg9+wV/y1d8Jq4EAlzXdAux+JRgMGQgj8CSPSSY1z2PO4iZProdgFa/dto8AlVRabVCTx6BoCnMrImy2XRHdF0Ue0eY5mtAAsnLudjKqm8AUopMOivNCLVI5eXzMIoMmpa0bUj7IluoushYVLY0dw7flyKldiDbyvi4w/jrxHRruNMb11fNEFQIDAQABAoIBADoBSpETpfONDBDqSsGfxypeeSOzE+A54pEOPlyG2Y14pmuWvYJCSy2ttlkYX6hRGb+cirL5A9nnb3xsxkVqzJdMlMejoWg/3zMWW1P7KeV5FTFhWbxGgnCcWHzNdYFfj9VQC80tqpe31lRCAQcyfQsr0ajwD+l4zDCnMLFrDmIuICDFz29wMQC72t8TPCE4dykw8vr5LnKf3aJyh5ScrsNyry73Oiq2X48xadZ2Dh4TW9v5DgBDTiOlsWmXaZbNg8nlJh6MjMTbe7CO9w3ge95liz5XE/CrhR5RWJmiOY8MudvIEov1CQlVMUI11RG8mRKV5qs0Ma+5E2QEMtPWzEECgYEAzc1NxqDoqO9IgGOWRheT2i6vOJEsaeeN4u/E9bm0nYDtsLS9Dg1liSJkze2nTqpEAA1iFt79n3M0fD8CXDWcleGxF7ZeDM0xuN91FAoY4XkZFZaEi8hlsOmZ6A7qusgQQi19Win50CSdgp1Snc7Y0UBXLnvjMZJ8CjQQItL9hhECgYEAqm9IxO9pm+OdrwYD/ZpKypDzm2w7EqZi7LD4J8d63H0t/tIO1Zrxy5qKQOu8XMbkwQjVykPyZJHOd+8ICrKFbfn7xjxqPvW9h809/9jfYY3RLMhKtaDJ7ktwJxVtGmjO+PEft4RGoLmEfbrTSnarasBY99njhKNG8FtTc75cicUCgYEAwdGdcvhtxVP9SvT/PKnN1Ahteu+2DVNG3DgFnYo0oLUgpW/CMO7K9jjPCOXN0JcoDYiNHY8K+tUL1AufVGolOz7fgr58mr/RGRRR9fqAbjCXQC6OS/sCUnfeO594z0nFjh27VWP84lrpgG5btUVuCrv2n0+Lq08SxKU9oR5mJ5ECgYBnPEs2xtIQlBoCV0F5jsj41D5LCY7qqBBJ0JQv/DumbMi8jl5f8p+9tVlDI8eP5wXPC1v8TZX4Zv1KVmZnnGUIDaD9HcE5a76nEKIaZDJCtBVc6+GdDMzj45wGgIr6sTuVPPD6R0xEtLrVMaIke6cvXV1GnBudTw18L8Vn2YnSBQKBgG/NxXjh+urIa+qsIzNHbrTCt+qGsix8z1f7s1OwTlVksFW3otaNK2hIDMlslUgRnVzjZfPyzKME/EuA/WjqAn/ZxqDR1TYvgxil8EaBn9jTEL7LO06ggCuh1dnmPrzC06no5E6Gj4m+6tknO5K5/NU/2HqQnaR6IB514ut7URba"
  }
}

4、Efcore迁移 需要安装 Microsoft.EntityFrameworkCore.Design,Microsoft.EntityFrameworkCore.Tools

add-migration Ids4Config001 -c IdentityContext -o Migrations/Ids4Config

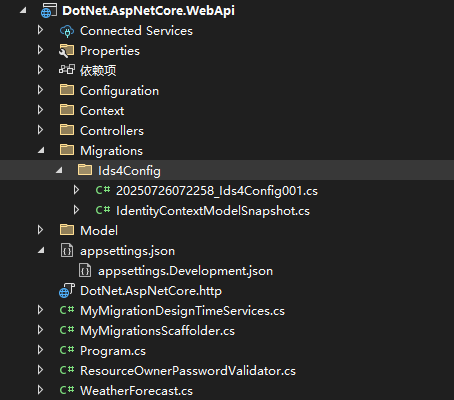

成功示例:

5、迁移多租户上下文

//Add-Migration InitialCreate -Context TenantDbContext -OutputDir Migrations\SqlServer -Args "--provider SqlServer"
//Add-Migration InitialCreate -Context TenantDbContext -OutputDir Migrations\MySql -Args "--provider MySql"
Add-Migration InitialCreate -Context TenantDbContext -OutputDir Migrations\PostgreSql -Args "--provider PostgreSql"
//update-database -Args "--provider MySql"
//update-database -Args "--provider SqlServer"
update-database -Args "--provider PostgreSql"

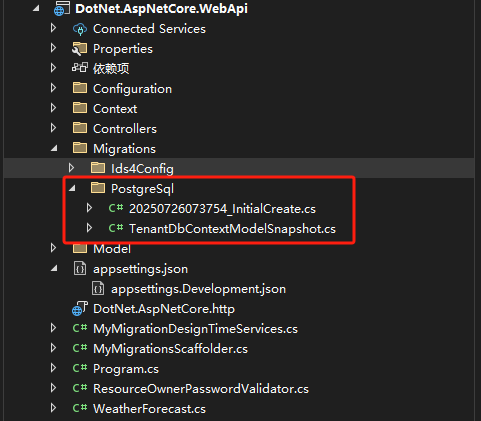

成功示例:

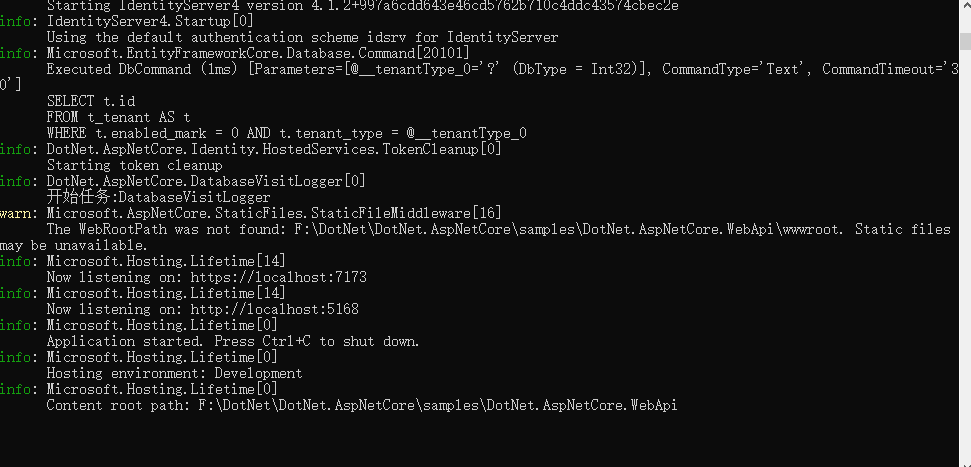

6、运行项目

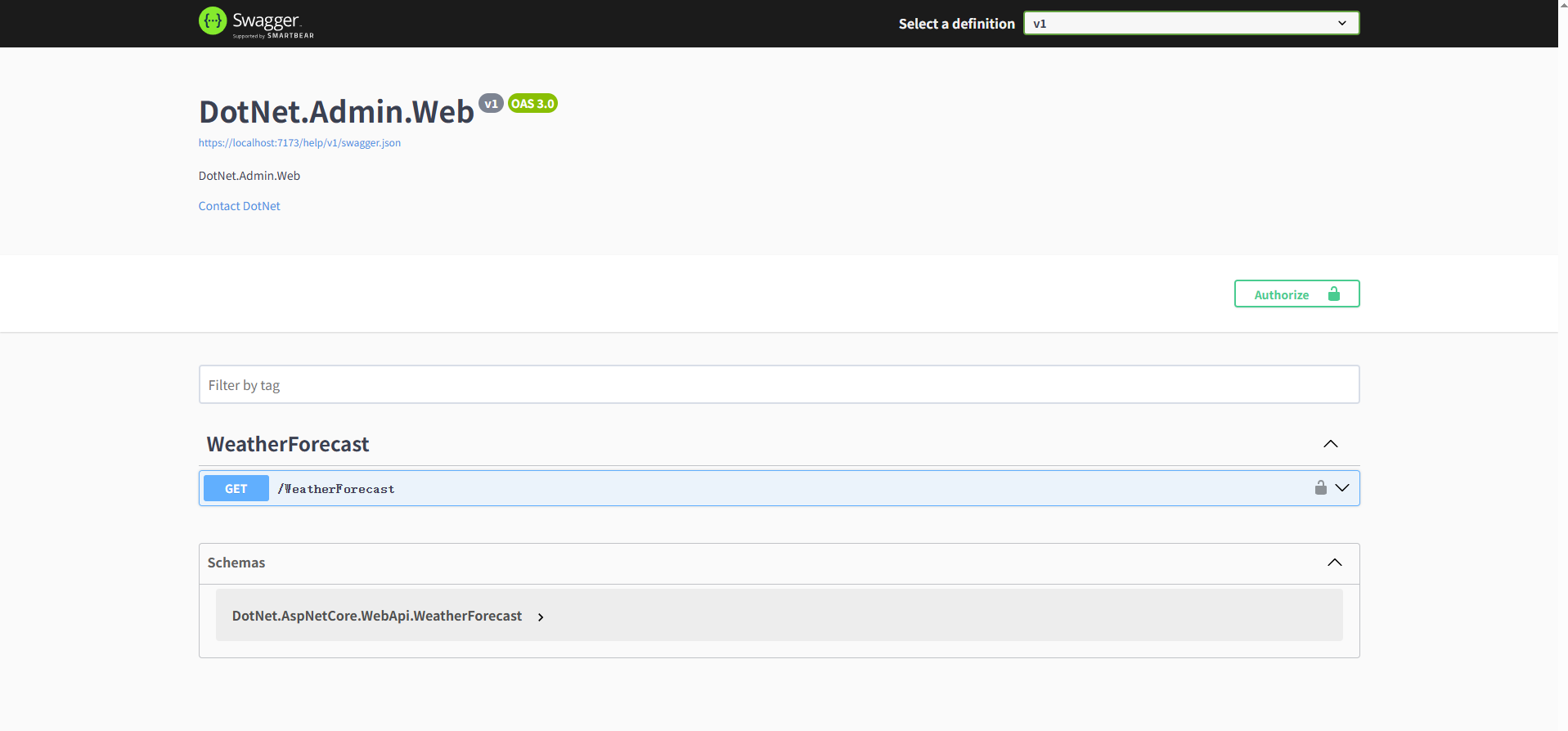

运行成功打开swagger

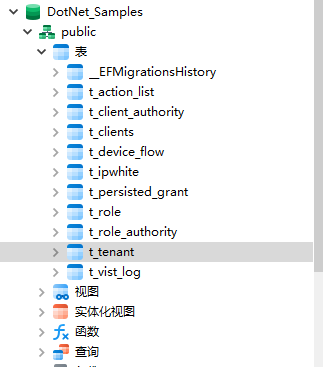

自动生成数据库

需要配置库隔离的租户连接字符串 支持pgsql,sqlserver,mysql

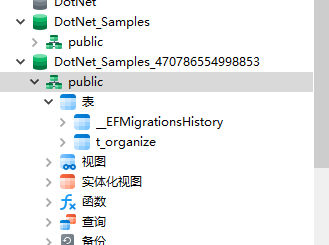

在重新启动程序迁移多租户数据库

至此基本的配置使用完成

7、DotNetDbContext<> 自定义的DbContext继承DotNetDbContext<> 内置实现了软删除(IDeleteFilter)和 多租户(IMultiTenant)的启用和禁用,但需要继承相关的Domain接口,提供了一些审计 字段的实体定义,数据库表的实体必须继承实体接口标识(IEntity)如下图:

更多用法参考文档
