SwaggerUI.OpenApi 2.2.0

SwaggerUI.OpenApi

A package to simplify adding Swagger UI to .NET 9's Microsoft.AspNetCore.OpenApi.

Usage

1. In your Program.cs file Add app.AddSwaggerUI() and app.MapSwaggerUI():

     builder.Services.AddOpenApi();
   + builder.Services.AddSwaggerUI();

     var app = builder.Build();

     app.MapOpenApi();
   + app.MapSwaggerUI();


2. (Optional) Modify your launchSettings.json file to open Swagger automatically:

   -  "launchBrowser": false,
   +  "launchBrowser": true,
     "applicationUrl": "http://localhost:5150",
   +  "launchUrl": "swagger",


Please note that for .NET 10 and later, the library sets the JsonSerializerOptions.NumberHandling to Strict for better Swagger experience.

If this is not desired, you can set it to AllowReadingFromString in your Program.cs file.

builder.Services.AddSwaggerUI();

builder.Services.ConfigureHttpJsonOptions(options =>
{
    options.SerializerOptions.NumberHandling = JsonNumberHandling.AllowReadingFromString;
});

Features

Authentication

If you want to add authentication to your Swagger you can use the following helper methods:

builder.Services.AddOpenApi("v1", o =>
{
    o.AddOAuth2(authorizationUrl, tokenUrl, scopes);
});

builder.Services.AddSwaggerUI("v1", o =>
{
    o.AddOAuth2(clientId, scopes);
});

There are other helper methods for Duende Identity Server AddIdentityServer() and Auth0 AddAuth0().

You can check the samples directory for complete working examples.

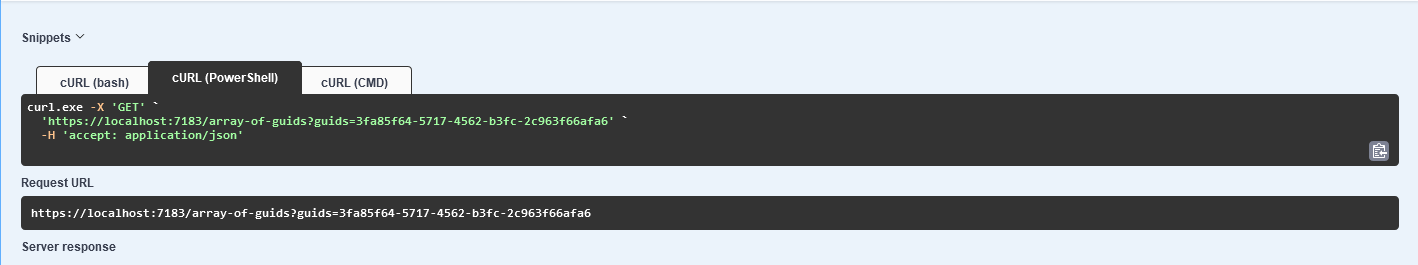

More snippet

Adds PowerShell and CMD cURL to the request snippet by default

Styles

Easily change syntax highlighting style

builder.Services.AddSwaggerUI(o =>
{
    o.SyntaxHighlight = new SyntaxHighlightOptions
    {
        Theme = SyntaxHighlightThemeType.Arta
    };
});

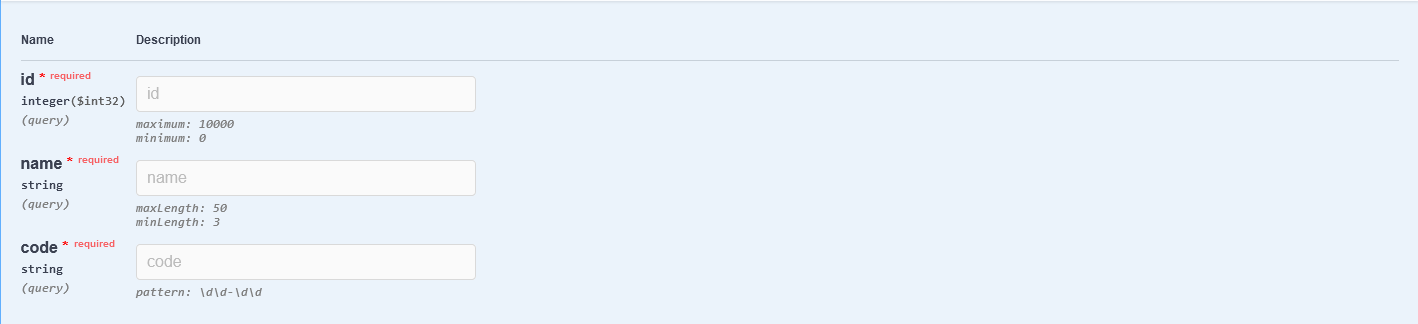

Parameter validation

Displays the common validations in the parameters form by default

app.MapGet("/products",
    ([Range(0, 10000)] int id,
    [MinLength(3)][MaxLength(50)] string name,
    [RegularExpression("\\d\\d-\\d\\d")] string code) => id)

Authorization persistence

Persists authorization data by default and it would not be lost on browser close or refresh so you don't have to authenticate everytime.

Roadmap

✅ Basic UI

✅ Authentication

✅ Enable all the documents

✅ Implement all Swagger UI options

✅ Improve test coverage

✅ Full data type support (TimeOnly, TimeSpan, Email)

✅ .NET 10 and OpenAPI v3.1.1

⏳ Support for Asp.Versioning.Http package

Acknowledgement

This project is based on Swashbuckle.AspNetCore.SwaggerUI. Thanks for their awesome work.

Pre-release builds

Get the package from here.

Build

Install the required .NET SDK and run:

$ dotnet build
